Yehans Aluminum Glazing Doors & Windows

The First Choice For Specifiers

Yehans Systems are the first choice for architects, builders, developers and discerning individuals looking for a modern and high-performance solution for their aluminium windows and doors.

Through every component of a Yehans product, architectural design is at the forefront. All frames are designed for the most minimal solution whilst maintaining impressive levels of performance. The range available from Yehans includes steel look aluminium windows, doors, bifolding doors, facades and sliding window and door systems. Each system from the Yehans range has been designed with outstanding levels of engineering and comes with proven test results for your peace of mind.

If you are looking for shorter lead times, thinner frames and higher performance ratings for your glazing systems, the Yehans® systems adhere to the highest levels and standards in both durability and thermal insulation.

The team behind the Yehans® systems are dedicated, talented and highly qualified professionals with a wealth of knowledge and experience in aluminium system design. Yehans® delivers an unrivalled service and strives to be at the forefront of all new glazing system advances.

Ultra slim doors and windows for the …

Architects

The next generation of luxury aluminium glazing systems

Yehans are expert designers and fabricators of award-winning fenestration, advanced aluminium door systems and roof glazing. Based from state of the art fabrication facilities in Accra, Ghana, Ghana offer the latest designs in modern architectural glazing manufactured bespoke to each project. The in-house design and installation team have worked on hundreds of projects throughout the Ghana from multi-million commercial and residential projects through to high specification residential renovations and extensions.

The worlds tallest and slimmest thermally broken aluminium bifolding doors are available exclusively from Yehans, pushing the boundaries of architectural design. These advancements in building envelope design have been born from the markets call for bigger glass units, slimmer sightlines, taller doors and larger openings. These modern systems are revolutionising the industry, allowing architects to achieve the design they want without compromise.

 The innovative systems from Yehans are designed and manufactured bespoke to each project to cater to all architects requirements. Yehans ensure that all their systems are manufactured to the highest quality to offer outstanding aesthetics as well as performance levels that achieve and excel the necessary performance. If you are interested in Yehans Aluminium Systems for your architectural projects or would like to view the systems in person at the showroom then please get in contact with our team.

The Full Package

You can find a window or door to suit every opening in your build from the Yehans product range. Ensure you achieve a cohesive and connected design by using Yehans products throughout your design.





Home-Owner

Modern Windows & Doors For Your House

Ensure your home gets the best in design and performance with an aluminium window & door system from Yehans.



Aluminium Windows & Doors for Your Home

When you are looking to update your home or add an extension the glazing you choose is a key decision. You want to make sure your aluminium glazing not only looks great but performs well throughout its lifetime. All aluminium windows and doors from the Yehans Range are made using the latest fabrication technologies and designed to the highest levels of performance so you can be sure of quality.

Our systems are designed with minimal framing and modern designs in mind. Whether you are looking for a slim framed patio door or a range of steel look windows, you can find the right solution from the range at Yehans.

Come and see the Yehans Systems in person at our Accra showroom. We have our full range of products available to see, touch and feel at this extensive show space. Get in touch with a member of the team who will be happy to make a personal appointment for you to meet with one of the team and explore the options for your home project.






Glazing Packages for Builder/Developers



Yehans® Aluminium offer a comprehensive range of aluminium windows and door systems suitable for any type or scale of project. Each system is meticulously engineered to meet even the most demanding of site conditions and requirements. Our professional contract and installation team can manage the installation for you.

By using products from Yehans® aluminium on your project you can be sure you are receiving the very best in both quality and design. Our aluminium windows and doors cover a range of budgets so you can ensure your project not only looks great, but is delivered within budget.

With a high tech fabrication factory we can offer impressive and efficient lead times with bespoke details, finishes and ironmongery options. To receive a quote for your aluminium window and door package simply get in touch with a member of the team who will be happy to help.

 PRODUCTS

Yehans Oversized Sliding Doors

Large Format Sliders with Minimal Frame

The Yehans ® Oversized Sliding Door is a truly impressive sliding door system which outperforms the competition for both design and performance. This enhanced version of the standard Slim Slider has a 54mm depth, allowing the framing profile to accommodate triple glazed units or laminated double glazing units. There are a broad range of sliding configurations possible from a single pane sliding pocket door to a six pane opening corner sliding system. And of course, automation is available.

Thermal Insulation: Uw values from 0.9 W/m2K

Max. Pane Size: calculated on a project by project basis

Configurations: from one track to three tracks available. Opening corners, bi parting sliders and pocket doors all available

Glass Specification: up to 54mm glass, insulated triple glazing or laminated glazing with low e coatings and argon gas filling

Weather Protection: full testing completed, water (9A), air (4), wind (C3)

Automation: automated recommended for sliding units over 400kg

two pane slim sliding aluminium door used as a seafront balcony door

oversized slim sliding door from Sieger with minimal aluminium framing

oversized sliding glass balcony door with slim aluminium frames

The oversized version of our Slim Sliding Doors offers a higher level of performance both in strength against wind loading and insulation. The slim aluminium framing can hold laminated panes or a triple glazed unit which allows you to achieve much higher levels of thermal insulation.

These large format sliding glass units can be made in impressive sizes. Automation is recommended if the sliding units weight more than 400kg to make the system manageable with an overall maximum unit weight of 700kg.

There are many sliding configurations possible from pocket doors to opening corners. Linear elevations of this sliding glass door can be up to 3 panes sliding in one direction. For a longer elevation of glass you can specify the sliding panes as bi parting and create a single elevation of sliding glass up to 6 sliding panes wide.

This slim sliding doors solution also has a unique base option which allows the floor finish to continue right across the base from inside to out. The flush threshold even further blurs the division between inside and out.

Further information about this system can be obtained by contacting a member of the Yehans team.

Yehans Slim Sliding Doors

Slim and Minimalist



Designed with high levels of insulation and weather resistance this aluminium slim framed sliding door offers a modern indoor-outdoor living aesthetic to properties. With the ability to hide the outer frame within the internal and external wall finishes, the Yehans® Slim Sliding Door is an incredibly minimalistic aluminium sliding door design especially with the vertical sightlines measuring only 20mm. This ultra-slim sliding patio door is suitable for a wide range of buildings including residential extensions, new build houses, balconies, property renovations and roof terraces.

Sightline: 20mm

Thermal Insulation: Uw values from 1.3 W/m2K

Max. Pane Size: 2.5m wide x 3m tall per sliding pane

Configurations: up to 3 tracks, biparting, opening corners and pocket doors all possible

Glass Specification: up to 30mm thick insulated double glazing as standard with low e coating and argon gas filling

Weather Protection: full testing completed, water (7A), air (4), wind (C5)

Locking: fully integrated into framing



 floor to ceiling aluminium sliding glass door from sieger

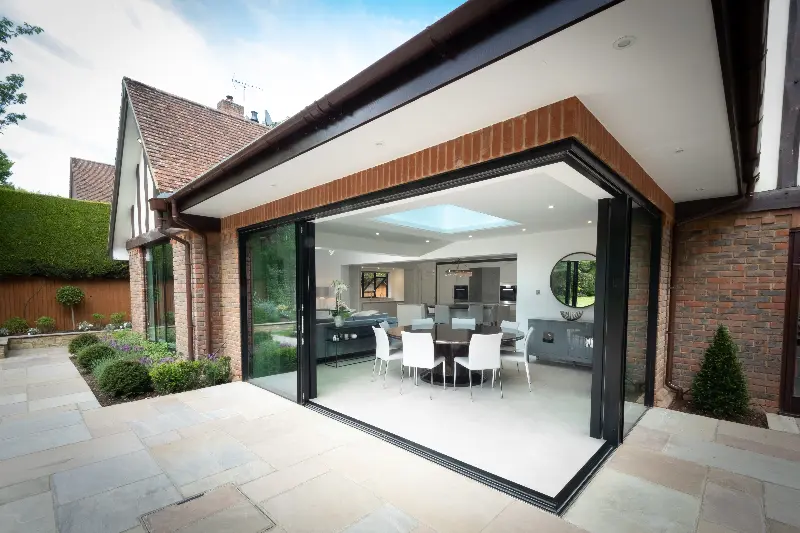

modern extension on a traditional home with open corner slim sliding glass doors



two pane sieger slim sliding door used in a modern Juliet balcony design

For those looking for slim framed sliders, the Yehans Slim sliding door system is one of the most minimal systems available on the market. The vertical profiles where the panes meet are just 20mm and the system is designed to be finished framelessly from the head to the base to the sides.

Across the flush track threshold, you will experience a completely flush finish. We have also designed the base with an integrated drainage system to deal with the extreme wet weather that can be experienced in Ghana.

The locking system is easy to use and integrated into the lead sliding door vertical profile which maintains the slim design. Locking is multi-point yet operated via one location which makes using and living with these doors easy.

Come and see the Yehans Slim Sliding Door in person at the Yehans Showroom. Contact the team to arrange your personal appointment. Also, contact the team for costing enquiries and assistance with the specification.

Yehans 45 Sliding Doors

Modern Aluminium Sliding Doors

The Yehans® 45 sliding door is a contemporary aluminium sliding door system designed with high levels of thermal performance. These aluminium sliding doors provide the highest security protection and are integrated with the latest and most secure locking systems available on the market today. These impressive sliding doors are suitable for installation on a range of buildings from residential extensions, new build houses, balconies and renovation projects.

Sightline: 45mm

Thermal Insulation: Uw values from 1.7 W/m2K

Security: PAS 24 Certification

Max. Pane Size: 200kg per sliding pane

Configurations: up to 3 panes

Glass Specification: up to 28mm, insulated double glazing as standard with low e coating and argon gas filling

Weather Protection: full testing completed, water (7A), air (4), wind (C4)

modern home extension with a three pane aluminium sliding patio door from Sieger



single storey home extension with aluminium sliding glass patio doors



The 45 Sliding Door from Yehans is a well-balanced system with a modern design finish. The aluminium frames are fully thermally broken and hold a highly insulated double-glazed unit, up to 200kg per pane. This creates a well insulating patio door system that can be used as a rear sliding door, balcony door or roof terrace access door.

With the locking integrated into the aluminium profiles the sliding door is simple to use and open. Removable key locks within the aluminium profiles allow for a high level of security certification whilst maintaining the modern profiles.

The vertical junctions between each sliding pane can be created at 45mm wide with a stronger surrounding profile to frame the aperture. Each installation can be powder coated in any RAL colour to match the design specification of your project.

This sliding door is available to view in person at the Yehans showroom. Contact the team to book your appointment. Quotations for the Yehans 45 Sliding Door are available on request and calculated for each project. Just use the links below to submit your quotation request and a member of the team will be in touch.

 Bifold Doors

Yehans 120 Bifold Doors

Slim Framing, High Performance

Create beautifully large open apertures with the Yehans120 Bifolding door. The aluminium bifolding door can contain up to 14 sashes; each sash measuring a maximum size of 1.2m wide x 3m high. This bifolding system boasts impressive levels of thermal performance with a minimalist design to create a contemporary finish for both new builds and renovations. It is available in a broad selection of configurations, and with vertical sightlines of just 120mm the Yehans120 bifold door is the most popular choice for modern projects. The highly versatile design is suitable for balconies, terraces, living rooms, open-plan kitchen/ dining areas and more.

Sightline: 120mm across both panes

Thermal Insulation: Uw values from 1.4 W/m2K

Security: PAS 24 Certified

Max Size: 1.2m wide x 3m tall per pane

Configurations: available as bi parting and opening corner doors

Weather Protection: fully tested for weather performance, air (4), water (9A) and wind (A3)

 three pane aluminium bifold patio door with dark grey frames in a modern kitchen extension

corner opening bifold doors with slim aluminium bifold frames

multiple sieger bifold doors used in a new build home with unique green patio door frames

These aluminium bifold doors are a fantastic choice for both new buildings and replacement glazing. The aluminium system provides a simple yet effective solution for door openings that boast high levels of thermal performance paired with modern design.



Our modern thermal break technology provides advanced thermal performance for your bifold door install to deliver comfort and energy efficiency to all buildings.

For a full glazing package a range of associated glazing products are available to complement this bi fold door, including roof glazing and aluminium windows. Our complete range of glazing solutions provide architects, developers and discerning individuals with a wide choice of glazing solutions.

Full technical specifications for this bifold door can be found in our product specification sheets below. If you would like to specify the Yehans120 bifold door on your project just get in touch with a member of the team who will be happy to assist with costing and design.

Yehans Legacy Bifold Doors

Steel Look Aluminium Bifold Doors

The Yehans® Legacy bifolding door offers a stunning steel-look design in a bifold door opening. The thermally broken aluminium profiles adhere to the highest level of security, thermal insulation and weather protection. Glazing bars can be integrated into the aluminium framing in whatever design you choose. This offers unparalleled levels of design flexibility to create the design and finish required.

Sightline: 120mm

Thermal Insulation: Uw values from 1.4 W/m2K

Security: PAS 24 Certification

Max. Pane Size: 1.2m wide x 3m tall

Configurations: up to 14 sashes, opening corners and biparting possible

Glass Specification: up to 45mm glass, insulated double glazing as standard with low e coating and argon gas filling

Weather Protection: full testing completed, water (9A), air (4), wind (A3)

 three pane steel look bifold door with slim aluminium framing and applied glazing bars for an elegant and industrial aesthetic

white framed bifold door with slim aluminium frames and glazing bars for a steel look effect

contemporary kitchen extension with modern and minimal design and a black steel look aluminium bifold patio door

Pair the Legacy Bifold Door with ironmongery from our premium range for a luxury bifold door installation.

The aluminium frames can be powder coated any RAL colour to offer a range of design finishes. A dark powder coat helps create an industrial design to the glazing, whereas a white or lighter finish can work well on historical buildings and Georgian style glazing.

You can pair the Legacy Bifold Door with our Legacy Window or Legacy Door for a full and cohesive glazing design and package.

Yehans Super Lux Bifold Door

World’s Tallest Bifold Door



It is now possible to create thermally broken, aluminium bifolding doors up to 5m tall with the Yehans Super Lux Bifold Door.

Based on the ultra slim Yehans Lux Bifold, the upgraded version can achieve extended heights of 3m to 5m thanks to the inclusion of a stabilising wind profile.

The Bifolding door system can then be used to create opening bifold doors to impressive heights.



Sightline: 144mm (across the double section of frame plus stabilising profile)

Thermal Insulation: Uw values from 1.6 W/m2K

Max. Sizes: heights from 3m to 5m, widths up to 1.2m wide per pane.

Configurations: No restriction on number of bi-folding panes, bi-parting openings possible, opening corners possible.

Glass Specification: maximum glass thickness 32mm, maximum weight 260kg per unit.

Weather Protection: Air Permeability Class 3, Water Tightness Class 7A to 9A.

This unique bifolding door system allows architects and specifiers to achieve the tallest bifolding door opening possible, whilst maintaining a modern and slim aluminium profile.



With the inclusion of the integrated supporting profile the bifolding door system can reach these impressive heights even in areas with extreme wind loading. Our technical calculation software can easily configure the bifolding door system based on the height required and the wind load of the specific project.

All locking is integrated into the slim bifolding door profile and each installation is provided with a high-volume integrated drain to deal with the high levels of water we get in Ghana.

The Super Lux Bifold is the next generation of aluminium bifolding door, pushing the boundaries of possibility for architects in Ghana.

Window Systems

An Award Winning Window System



The Yehans® Slim Casement Window is an award-winning aluminium window system. The modern aluminium profiles can be designed into a variety of configurations to suit the requirements of the project. These slim windows are a fantastic choice for both new buildings and replacement windows. They provide a simple yet effective window design that boasts high levels of thermal performance.

Sightline: 65mm across vent and frame

Thermal Insulation: Uw values from 1.1 W/m2K

Security: PAS 24 Certified

Max Window Size: side hung windows 700mm wide / 1300mm tall, top hung windows 1200mm wide / 1300mm tall

Configurations: side hung windows, top hung windows, fixed windows

Glass Specification: glass thickness up to 44mm, double glazing with low e coating and argon gas filling

Weather Protection: full testing completed, air (4), wind (2400 Pa), water (E1200)

large bedroom window with slim aluminium framing

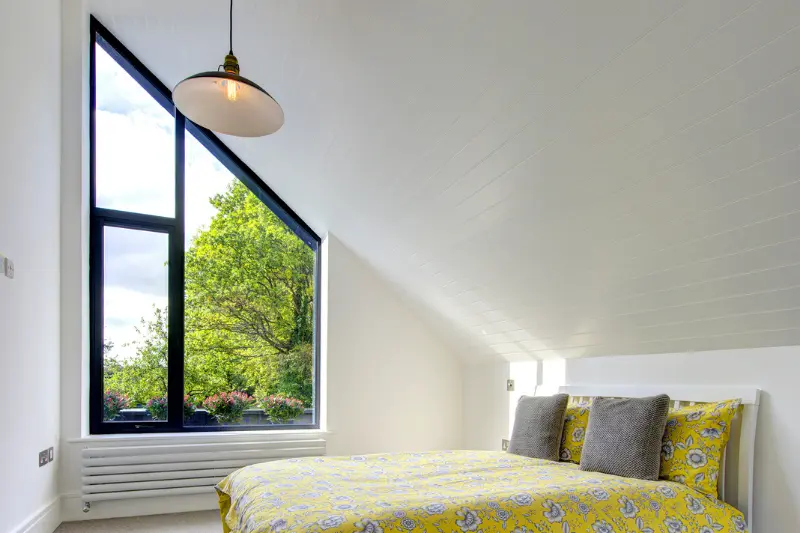

multilight slim casement window configuration with fixed gable end windows
multilight slim casement window configuration with fixed gable end windows
This slim aluminium window has a square edge detail on the profile and the glazing bead. By keeping the profiling minimal and square you create a clear edge to the glazing, making the opening look larger and clearer.



Even with such minimal profiles, the Yehans Slim casement window can still achieve impressive opening sizes with a side hung window available with a sash weight of 35kg and a top hung window available with a 50kg unit weight.

Fixed aluminium windows can be created with even larger sizes and this system is a great choice for large gable end windows or shaped openings for above any of our other aluminium door systems.

Thermal break technology is integrated into the framing profiles for integral thermal insulation. The system has been fully tested for weather, thermal and high levels of security. All of this comes together to offer you a slim aluminium window with impressive performance and modern styling.

See Them in The Showroom

There are multiple configurations of the Yehans Slim casement available to view at the Yehans  showroom. Get in touch with a member of the team or click the link at the bottom of the page to book your appointment.

Get a Quotation

Request a quotation for your project by clicking the link below or just get in touch with a member of the team. All quotations for your aluminium window package are generated individually for your project to ensure you get the level of finish and performance you need.



Yehans Flush Casement Window

This flush casement window has been expertly engineered to enhance any project.



Designed with minimal sightlines and exceptional weather performance, this ultra-minimal flush window has a slimline sash of just 45mm. With a wide variety of glazing options, configurations and frame finishes available, the system can be designed completely bespoke for each project to ensure it meets specific design requirements.

Frame With: 45mm



Max Size: top hung 1400mm x 1200mm / side hung 700mm x 1400mm / ask the team about other configurations

Configurations: top hung / side hung / fixed / bottom hung / and more

Typical Glass Spec: 4mm – 18mm argon gas cavity – 4mm

Performance: air (4), water (9a), wind (E2400), acoustic (Rw 42 dB)

Security: PAS 24 & Secured by Design



gold framed three pane aluminium casement window with flush design

The system has full weather testing, a thermally broken aluminium frame and multi-point locking, offering unparalleled performance and security for your home.

The flush design and innovative framing details enables the window system to work in harmony with any building type. From listed buildings to contemporary new builds, this system offers uncompromised style and performance.

The slim 45mm sash runs the perimeter of the glass pane for an even and minimal design. Fully tested to PAS 24 and certified under the Secured by Design scheme, the Yehans Flush Casement meets all safety standards for complete peace of mind.

There are a range of configurations available for this flush window system including top hung, multi-light and fixed. Fixed versions of the windows can reach impressive weights of up to 250kg. Contact the team to discuss the full range of options.

See These at the Showroom

Come to the Yehans Showroom to see these aluminium windows in person. Just click the link at the bottom of the page to request an appointment or call the team who would be happy to help.

Request a Quotation

We would be happy to create a quotation for your project requirements. Click the link at the bottom of the page to request a quotation or speak to a member of the team to run through your specific project requirements. We can help tailor your glass package to ensure you achieve the design, performance and budget requirements for your project.



Yehans 70 TT Window

Slim, tilt and turn window



A contemporary aluminium window designed to provide a large, versatile tilt and turn opening with imperceptible handle and hinge options. These hidden elements are concealed within the sash to provide a pure aesthetic to the glazing design. The Yehans ® 70 TT Window is fabricated in our Amersham fabrication facility and can be manufactured as part of a full glazing package. The elegant frames of this slim, tilt and turn window provides the perfect finishing touch to modern, rectilinear architectural designs.

Sightline: 66mm vent + frame profile

Max Sizes: up to 2.4m tall x 1.3m wide and 160kg per pane

Configurations: side hung, tilt&turn, bottom hung, tilt and turn parallel (all inward opening)

Weather Protection: air permeability class 4, wind resistance class C5, acoustic reduction RW 46 dB

Thermal Insulation: Uw value from 1.0 W/m2K

Typical Glass Spec: 6mm TXD outer, 16m argon filled cavity, 6mm TXD inner with low e coating

Frame Finishes: PPC, timber effect PPC, anodised and dual colour.

The Yehans® 70 Window has been designed to meet some of the most complex industrial and architectural designs. Each Yehans® 70 window is manufactured bespoke to the measurements and requirements of each project for beautifully tailor-made fenestration.

The beauty of this system is the large openings and minimalistic aesthetic achievable with this design. The handle, hinges and locking mechanism are all hidden within the frame of this large tilt and turn window to enhance the modernity of the building envelope. The vent and frame profiles are just 66mm, which results in a highly glazed facade due to the minimal visible framing.

The slim design of this window works perfectly with the slim aluminium door systems available from Yehans®, including the Yehans Slim Sliding Door and the Yehans® Lux Bifold. Specifying various Yehans® Systems within your bespoke glazing package will ensure a cohesive design to your project.

Speak to a member of the Yehans® team who will be able to show you the Yehans® 70 Window in person and offer your advice to help materialise your ideas. To arrange a showroom visit email sales@yehansinternational.com or call us on +233 (0) 302 512-525 | +233 (0) 544 342 314 .

Yehans Legacy Window

Timeless Design, Modern Performance

The Yehans Legacy Window offers a classic timeless design inspired by traditional industrial steel framed windows. The metal window profiles have a full thermal break and hold a double glazed unit for modern performance levels. These steel-look windows can be used to replace existing steel windows, or create an elegant glazing design on new build projects and renovations.

Sightline: 58mm across vent and frame

Thermal Insulation: Uw values from 1.5 W/m2K

Security: PAS 24 certified

Max Window Size: 600mm wide / 1400mm tall for side hung windows, 1400mm wide / 1400mm tall for top hung windows, 2100mm wide / tall for fixed windows

Configurations: side hung window, top hung window, tilt and turn window, fixed window, multi light casement window

Glass Specification: glass thickness 24-28mm, double glazing with low e coating and argon gas filling

Weather Protection: full testing completed, air (4), wind (2400 Pa), water (9A)

The outer profile of the Legacy Window is very minimal and a good match for older, more traditional steel systems. Unlike older steel systems the Legacy System offers a durable finish that is easy to maintain and look after. The full thermal break and insulated glass also offer high levels of insulation which are better suited to modern projects.

Any glazing bars within the window frame are bespoke and optional. You could use this system as a simple minimal aluminium window without the integrated glazing bars should you so wish.

If glazing bars are included within the design we include ‘dummy spacer bars’ within the double glazed unit. The aluminium glazing bars are then applied on the glass (on both sides) which creates a much more authentic steel look design.

We have a large Legacy Window arrangement on show at the Yehans Showroom that is available to view. Simply contact the team to book your visit. If you would like a quotation for a Yehans Legacy installation contact us or click the links below to request a cost for your project.

Legacy Tilt and Turn Window

Contemporary tilt and turn window with optional glazing bars for a steel look aesthetic



The Yehans Legacy Tilt and Turn Window provides a more cost effective alternative to steel tilt and turn windows. This system produces a strikingly elegant industrial aesthetic with slim sightlines and high performance levels. With a range of frame finishes, glazing options and configurations, this window system can be designed completely bespoke to match any project.

Sightline: 76mm

Max size: 1200mm wide x 1600mm tall

Configurations: side hung windows / bottom hung windows / tilt + turn windows / fixed windows

Typical Glass Spec: 4mm TXD / 20mm argon gas cavity / 4mm TXD low e OR

6mm TXD / 16mm argon gas cavity / 6mm TXD low e

Performance: air (class 4), water (class 9a), wind (class AE), Uw (1.5W/m2K)

Handles: range of ironmongery available

grey framed tilt and turn windows on a traditional architecture style home

The aluminium framing on the Legacy Tilt and Turn Window can be polyester powder coated any RAL colour and the option of including true or applied glazing bars in the design allows flexibility in the design.



All Yehans aluminium frames used specially engineered thermal break technology resulting in high thermal performance for our systems. Trickle vents can be incorporated into the head frame to ensure adequate ventilation throughout the property.

The Legacy Tilt and Turn window can be paired with any of our aluminium framed doors. Try matching it with the Legacy Bifold or Legacy casement door for a cohesive industrial style finish.

For more information call the team on +233 (0) 302 512-525 | +233 (0) 544 342 314  or email sales@yehansinternational.com



Innovare by Yehans

A modern, flush glazed window system

The Innovare range is unique in its clean lines and simple modern elegance. The glass pane sails over the external face of the frame, creating a window with edge to edge glass.

The glass is bonded directly to the frame unit meaning there’s virtually no exposed metal or fibreglass. Combined with aluminium natural corrosion resistant properties this creates an extremely durable frame.



Thermal Insulation: Uw Values from 1.1 W/m²K

Maximum Size: opening 1500mm x 800mm / fixed 2200mm x 1600mm

Weather Performance: air (class 4), wind (class 2400 Pa)

Security: PAS 24 certified

Configurations: Outward opening only; fixed / side hung / top hung / multi light arrangements

Glass options: Low Maintenance Glass / Solar Control Glass / Low Iron / And More

large flush glazed aluminium casement window from Sieger

Flexibility is key when it comes to manufacturing bespoke glazing solutions. Our window systems have a wide range of glazing options, frame finishes and configurations. The Innovare by Yehans window is no exception, with a huge variety of configurations available.

With an aluminium subframe the Innovare system is minimal on both inside and out. The surrounding fixed aluminium frame can be hidden by the building finishes. This flush glazed system is designed to fit perfectly into replacement projects and is available for external in Anthracite Grey and Black and a full range of RAL for internal colours.

The Innovare by Yehans handle is a heavy weight handle with a sturdy feel. This handle is Secured by Design certified and has an integrated heavy duty sprung latching wedge.

To ensure adequate water protection in the wet Ghana climate it is a necessity for all windows to have a cill. With modern glazing advances cills can now be as small as 30mm, barely protruding from the building exterior.

For more information call the team on +233 (0) 302 512-525 | +233 (0) 544 342 314  or email sales@yehansinternational.com

Yehans HD Casement Window

For a modern and minimal aluminium window system that can reach impressive sizes, the Yehans HD Window is the perfect choice.

This heavy duty window system is able to reach impressive sightlines whilst maintaining a slim, square-edged aluminium profile. The modern design is ideal for any architectural style and with impressive weather and performance values can enhance any building project.

Flexibility is key when it comes to specifying bespoke glazing systems, and this aluminium window has a wide range of configurations options, frame finishes and ironmongery, allowing each window to be manufactured to fit specific design requirements.

Frame Depth: 58/70mm

Max Size: side hung 900mm x 1800mm / tilt and turn 1400mm x 2400mm / view data sheet for more info

Configurations: top hung / side hung / fixed / bottom hung / and more

Typical Glass Spec: 6mm – 16mm argon gas cavity – 6mm

Performance: air (4), water (9a), wind (2400 Pa)

Security: PAS 24

aluminium multi-light window arrangement with top hung and fixed casement windows

For unparalleled performance levels, the system has been expertly engineered and undergone full weather testing, surpassing requirements. A thermally broken aluminium frame and multi-point locking offering high thermal performance levels and security for your home.

With eight different handle options to choose from, as well as frame finishes in over 200 RAL colours and a variety of glazing options, this aluminium window system is designed completely bespoke for each project.

Contact the team to discuss the full range of options.

See These at the Showroom

Come to the Yehans Showroom to see these aluminium windows in person. Just click the link at the bottom of the page to request an appointment or call the team who would be happy to help.

Request a Quotation

We would be happy to create a quotation for your project requirements. Click the link at the bottom of the page to request a quotation or speak to a member of the team to run through your specific project requirements. We can help tailor your glass package to ensure you achieve the design, performance and budget requirements for your project.

Schuco Casement Door

Elegant frames and contemporary finishes



The Schuco Casement Door can be fabricated into a range of configurations including a single opening door, a double door and with fixed sidelights. The elegant aluminium frames create a contemporary finish whilst the inbuilt thermal break and insulated glass ensures high levels of performance. The aluminium frame can be finished in a wide range of RAL colours to produce the required design. This casement door can be used in conjunction with any of our other aluminium products for a full glazing package.

Sightline: 147mm across vent and frame (single) / 201mm (double)

Thermal Insulation: Uw values from 1.8 W/m2K

Max Opening Size: 1.4m wide x 3m high for single door

Configurations: single door, double door, with sidelights

Glass Specification: glass thickness 25-34mm, maximum weight 150kg per unit

Weather Protection: fully tested, air (2), water (5A), wind (C3)

slim framed aluminium Schuco casement door in a modern home extension

double opening aluminium casement patio doors from Schuco used in a glass extension

internal view of a modern Juliet balcony with Schuco aluminium casement doors and fixed sidelights

Pair these aluminium casement doors with the Yehans Balustrade System to create Juliet Balcony doors for upper floors. The Yehans Slim Casement and Yehans HD Casement work well with this casement door to form a full glazing package that is cohesive and matching.



These aluminium casement doors can be created to very large opening sizes to fill wide openings. You can fill larger openings by including fixed side lights or fixed windows overhead.

Visit the show room in Amersham to see Yehans Systems in person, select framing finishes and see the ironmongery options.



Yehans Legacy Doors

Elegant Steel Look Doors



The Yehans Legacy doors create a traditional Bauhaus style aesthetic to both modern or heritage properties. The slim vertical and horizontal frames create an elegant look while allowing light to flood through into the internal living spaces. There are a wide range of configurations available with this glazing system including double doors, Belgian doors and multi-light arrangements. Matching windows are available to create a cohesive Art Deco style design throughout the property.

Sightline: 58mm across vent and frame

Thermal Insulation: Uw values from 1.5 W/m2K

Max Door Size: 900mm wide, 2100mm tall, 60kg per pane

Configurations: single doors, double doors, outward opening, multi-light arrangements

Glass Specification: glass thickness 24-28mm, double glazing with low e coating and argon gas filling

Weather Protection: full testing completed, air (4), wind (2400 Pa), water (9A)

 internal view of the sieger legacy casement door as steel look aluminium Belgian patio doors



Aluminium is a great alternative to steel when creating opening windows and doors. The thermally broken aluminium profiles of the Yehans Legacy systems offer exceptional thermal performance and minimal framing. The design achieved offers a slim framed solution which is highly in keeping with more traditional steel systems.



The shallower framing profile depth of 47mm also makes the Yehans Legacy system suitable for replacement glazing on older buildings with reduced aperture sizes.

The Yehans Legacy door and matching window system is available to view at the Yehans showroom. Just contact the team to make an appointment to view.

More specification information can be found in our product data sheet below, including typical framing sections. Any questions, just get in touch with the team who can advise on costing and feasibility.

See Them in The Showroom

Visit the Yehans showroom to see the Legacy Door system in person. The large opening doors on show are a double door with fixed overlights and are finished with our premium Art Deco handle. Get in touch with a member of the team or click the link at the bottom of the page to book your appointment.

Get a Quotation

Request a quotation for your project by clicking the link below or just get in touch with a member of the team. All quotations for your steel look door are generated individually for your project to ensure you get the level of finish and performance you need.

 Yehans Lux Pivot Door

Ultra Tall Pivoting Door

The Yehans® Lux Pivot door is the latest advance in aluminium door systems. The thermally broken aluminium profiles can create pivoting doors up to 5m tall (or hinged doors up to 4m tall).

With highly engineered thermal break technology and a double glazed unit, the aluminium framed pivot door offers a high level of thermal insulation. In addition, the system has been fully tested for wind, air permeability and water resistance.

Sightline: 69-75mm vent + frame profile

Pivot Door Max Sizes: up to 5m tall, 1.6m wide and 250kg

Hinged Door Max Size: up to 4m tall, 1.2m wide, 200kg

Configurations: single pivot doors or hinged double doors, doors with sidelights, inward or outward opening

Glass Specification: structurally bonded glazing with max thickness of 32mm, double glazing with argon filling and low-e coating as standard.

Weather Protection: air permeability class 4, water tightness class 7A to 9A

Sieger Lux Casement Door in a modern home renovation with minimal aluminium framing

showroom image

YEHANS INTERNATIONAL ARCHITECTURE SYSTEM

Visit Our Showroom

showroom image

We are here to help. Contact us for Quotations, Technical Information, General Information and more.

What would you like to contact us about?
